Sinfonia Vibrator ER series

Sinfonia Vibrator ER series


Dongguan Chuangyu Electronic Co., Ltd. is a branch of Keepro Industry Group, founded in 2009 and specialized in developing and producing various high quality automatic feeders, like vibratory bowl feeders, centrifugal feeders, line feeders, step feeders, and robotic screw fastening machines, like handheld screw fatening machine, platform XYZ automatic screw robot and customized automatic screw fastening system upon our customers' demands. The main applicable industriesare automotive, home appliances, electronic, automobile, electrical components, 3C etc.

Product detail

Sinfonia Vibrator ER series

Sinfonia Vibrator ER series Sinfonia Vibrator ER series                   Sinfonia Vibrator ER series

video


Features


1. Applicable to small and precision parts feeding size:  above 10mm

2. Low frequency range: 50-90HZ

3. Oscillation: 1.2mm

4. Bowl diameter range: 250-1100mm

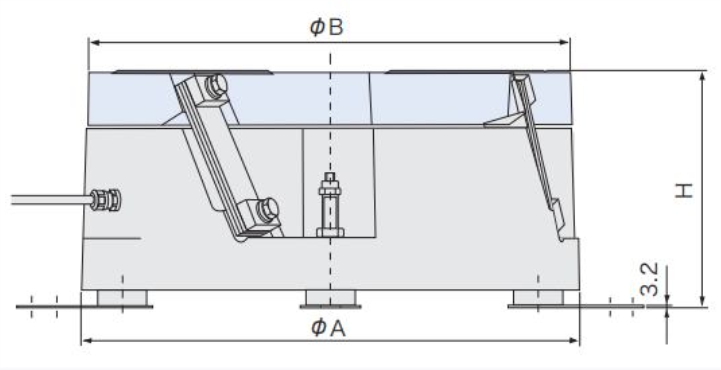

Model ER-25B ER-30B ER-38B ER-45B ER-55B ER-65B ER-75B
VibratorOD mm Φ260 Φ310 Φ390 Φ460 Φ560 Φ660 Φ760
Vibrator Height mm 198 225 264 286 321 321 321
Vibrator Weight kG 30 48 81 115 160 200 260
Vibrator Weight kG 20
Rated Voltage V 200
Rated Current A 1.0 1.5 2.0 2.5 5.0 5.0 5.0
Vibration Frequency HZ 50~90
Bowl Diameter mm 250 300 375 450 550 650 750
Max Bowl Dia mm 420 500 600 700 830 980 1100
Max holding weight KG 8 12.5 17/td> 26 70 85 125
Controller C10-3VF/3VFEF C10-5VF/5VFEF
