sinfonia vibrator EA series
Dongguan Chuangyu Electronic Co., Ltd. is a branch of Keepro Industry Group, founded in 2009 and specialized in developing and producing various high quality automatic feeders, like vibratory bowl feeders, centrifugal feeders, line feeders, step feeders, and robotic screw fastening machines, like handheld screw fatening machine, platform XYZ automatic screw robot and customized automatic screw fastening system upon our customers' demands. The main applicable industriesare automotive, home appliances, electronic, automobile, electrical components, 3C etc.
Product detail

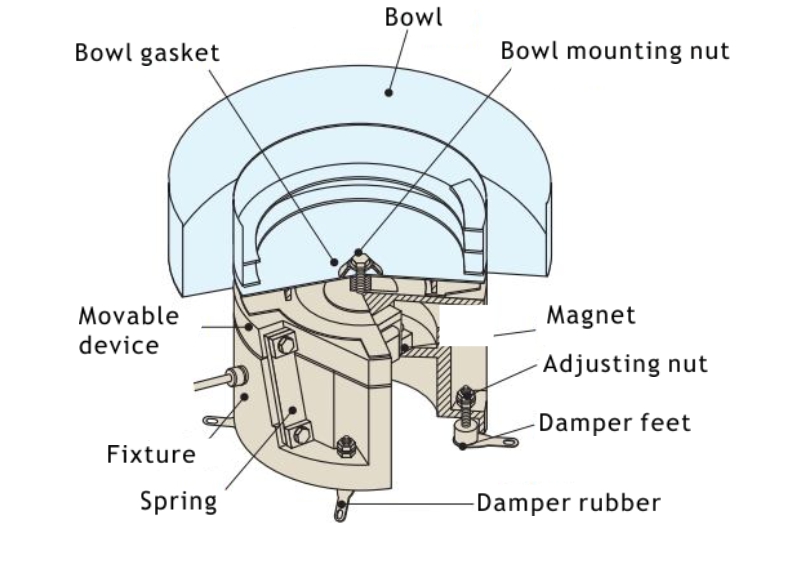

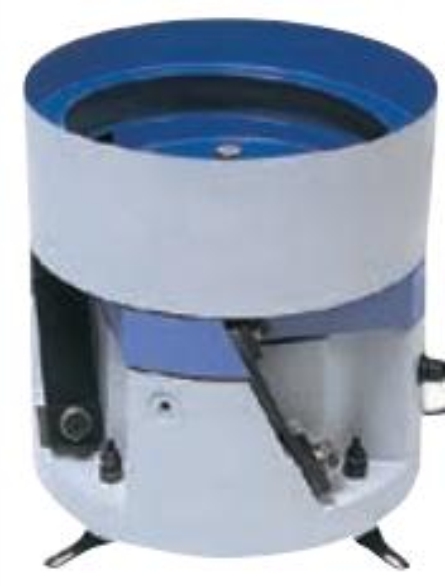

sinfonia vibrator EA series
video
Features
1. Applicable to small and precision parts feeding size: less than 10mm
2. High frequency range: 100-180HZ
3. Oscillation: 0.6mm
4. Bowl diameter range: 150-700mm

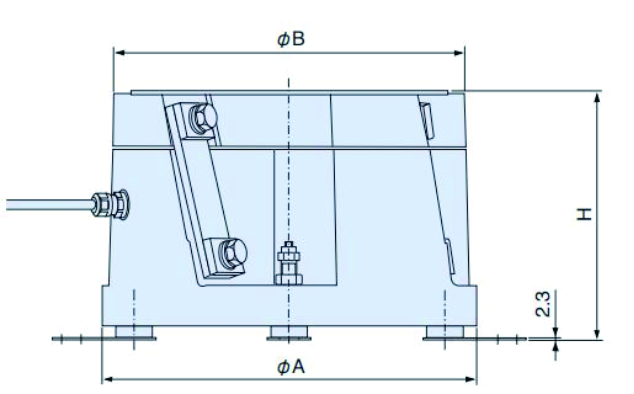

Model | EA-15B | EA-20B | EA-25 | EA-30 | EA-38 | EA-45 |
VibratorOD mm | Φ165 | Φ210 | Φ260 | Φ310 | Φ390 | Φ460 |
Vibrator Height mm | 133 | 155 | 190 | 220 | 260 | 280 |
Vibrator Weight kG | 8 | 16 | 30 | 48 | 81 | 115 |
Vibrator Weight kG | 15 | |||||
Rated Voltage V | 200 | |||||
Rated Current A | 0.38 | 0.8 | 1.5 | 2.0 | 2.5 | 3.0 |
Vibration Frequency HZ | 100~180 | |||||
Bowl Diameter mm | 150 | 220 | 250 | 300 | 378 | 400 |
Max Bowl Dia mm | 250 | 320 | 420 | 500 | 600 | 700 |
Max holding weight KG | 2.3 | 4 | 8 | 12.5 | 17 | 26 |
Controller | C10-1VF/1VFEF | C10-3VF/3VFEF |
