Sinfonia Vibrator DM series

Sinfonia Vibrator DM series

Features
  1. Handling components are transported without
     bouncing while it is operating by adjusting as
     lowest vertical amplitude as possible.
2. Very quiet operation noise because of smooth
transportation without bouncing on bowl surface.
3. Capable to replace with EA/ER series driving part.

Application
• Plastic, easily damaged workpieces for medical
   and electronic equipment
• For low-noise handling of auto automobile parts
  or other metal parts
• Precise equipment and other electronic parts
   that require highly accurate sorting.

---

Dual Motion Principle

---

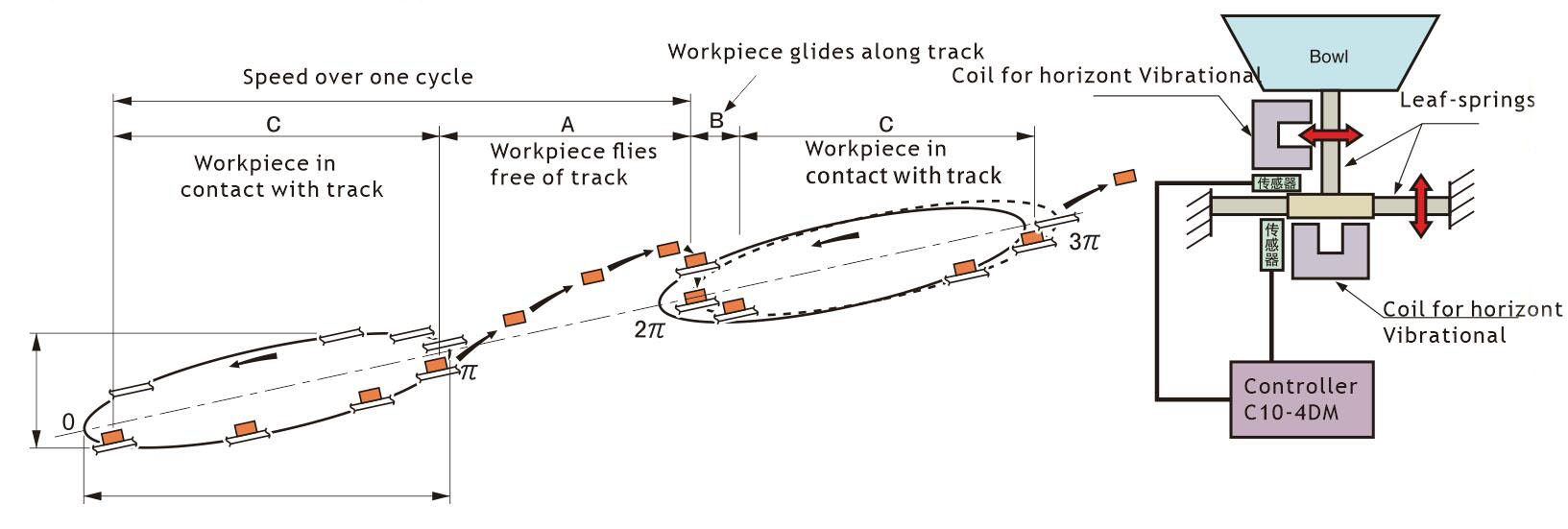

Friction (transport) controlled  through elliptical vibration
 Elliptical vibration is achieved by controlling optimal
phase difference to the horizontal and vertical amplitudes
of bowl vibration. Conveyance using elliptical vibration
results from controlling friction, and workpieces thus
travel as though gliding along the track.

Applied Dual Motion Structure
Dual motion is generated in these parts feeders
through feedback of vibration in the horizontal
and vertical directions, as shown in the diagram.
Sensors detect horizontal and vertical amplitude,
 thereby allowing separate control.







---

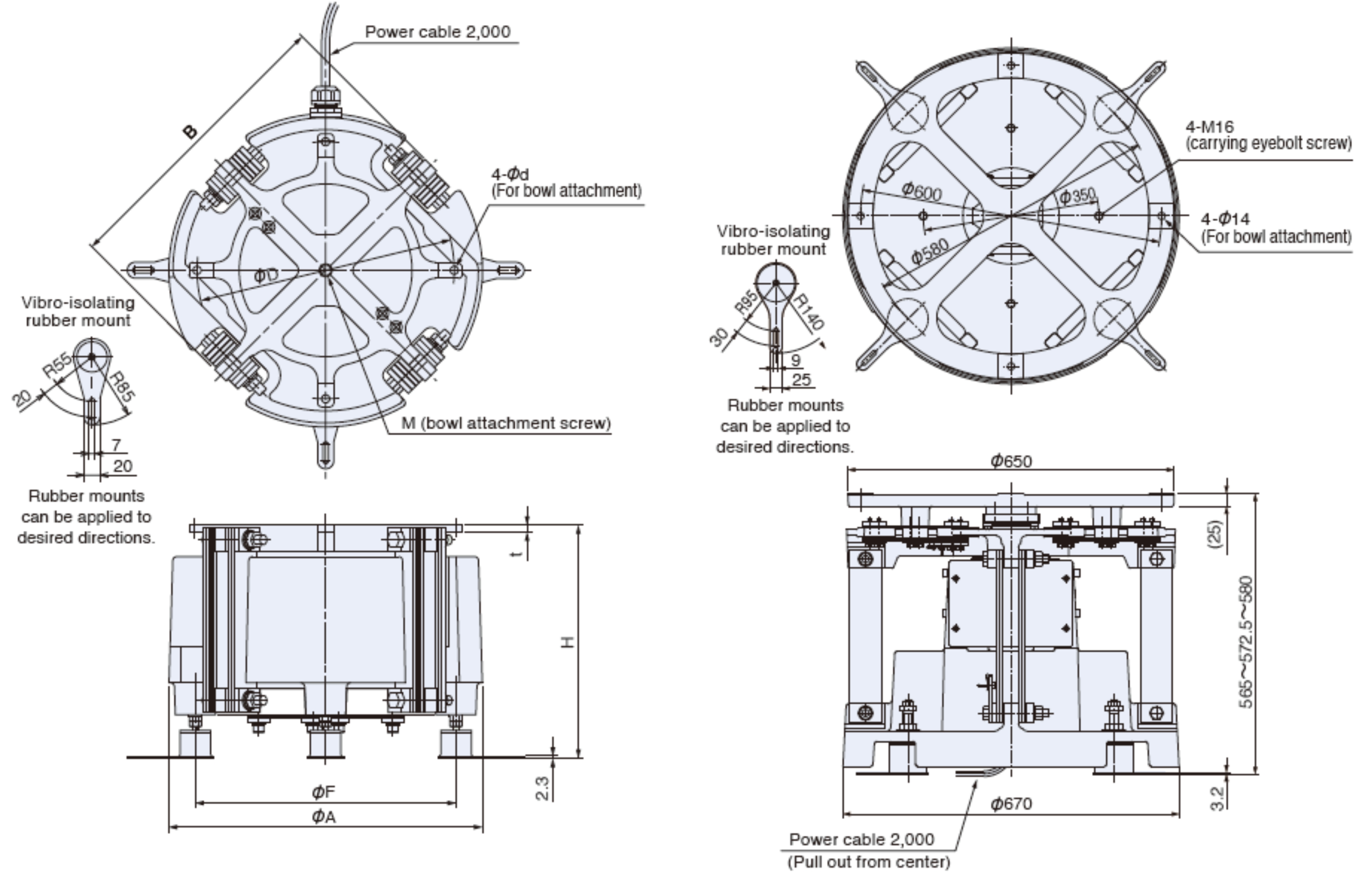

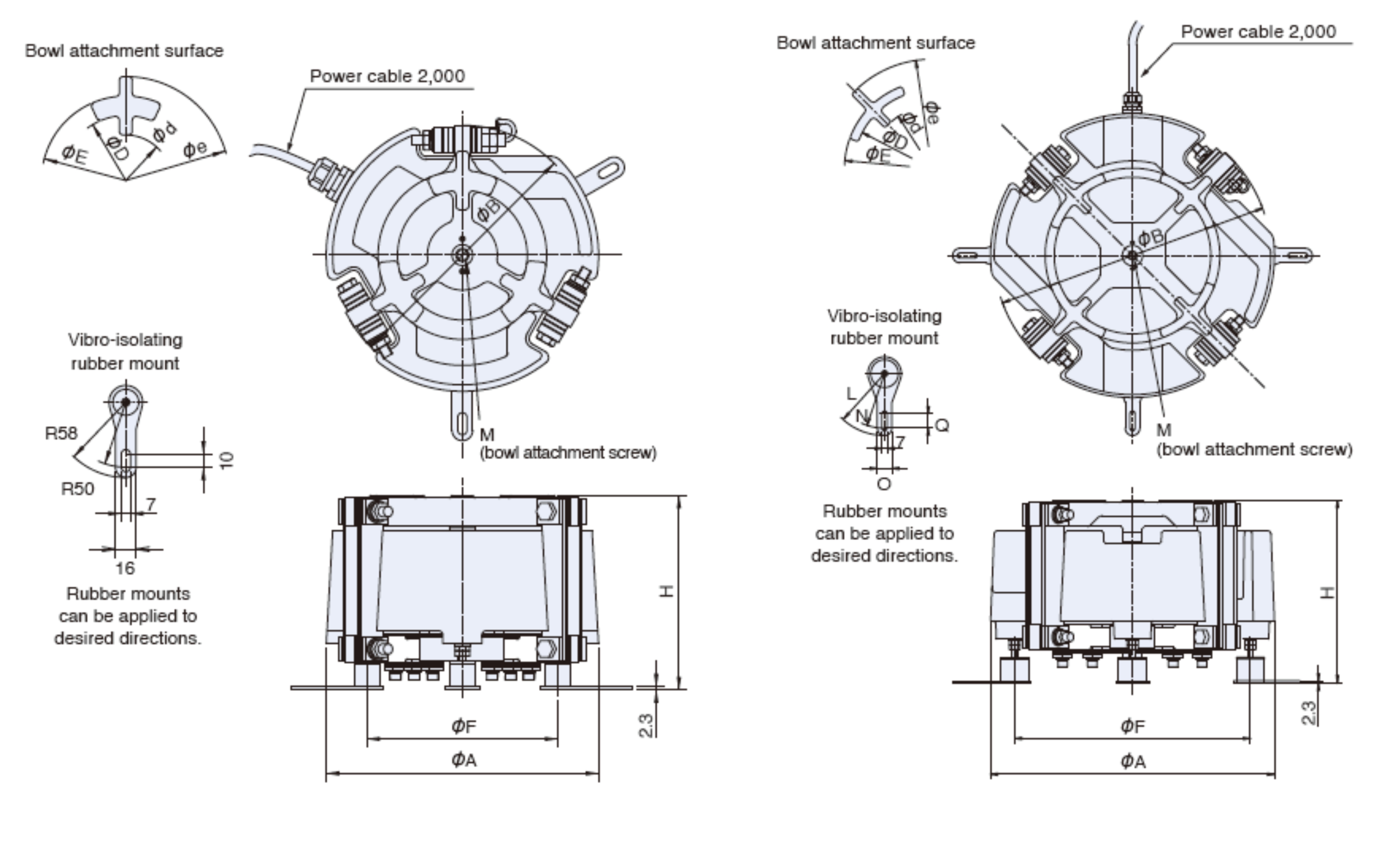

Illustration

---
