Sinfonia Linear Feeder
Features: 1. Simple, uniform vibration Use with heavier chutes and longer overhangs opens a wider range of applications. Consistent, uniform vibration is supplied without the need for adjustment. 2. Energy saving type Energy consumption cut by half, compared with our earlier models.
Product detail
Sinfonia Linear Feeder
| Specification | |||
| Model | LFB-300 | LFB-400 | LFB-550 |
| Rated voltage V | 200 | ||
| Rated Current A | 0.04 | 0.08 | 0.15 |
| Vibration Fre HZ | 90~120 | 80~110 | 75~100 |
| Weight KG | 3.0 | 5.0 | 10.0 |
| Spring angle Degree | 15 | ||
| Max amplitude mm | 0.6 | 0.65 | 0.75 |
| Controller | AJ-31S | ||

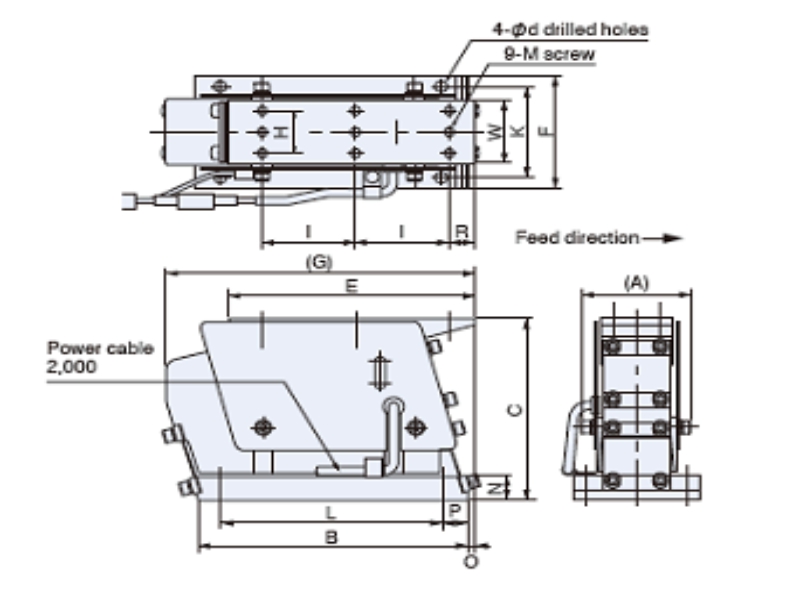

| Dimension | |||||||||||||||||
| Model | A | B | C | E | F | G | H | I | K | L | M | N | O | P | R | W | D |
| LFB-300 | 57 | 135 | 97 | 124 | 65 | 150 | 24 | 45 | 55 | 110 | 5 | 16 | 3 | 10 | 15 | 36 | 6 |
| LFB-400 | 65 | 160 | 120 | 145 | 75 | 180 | 28 | 55 | 60 | 130 | 6 | 16 | 5 | 15 | 15 | 42 | 7 |
| LFB-500 | 79 | 230 | 143 | 200 | 90 | 255 | 38 | 75 | 75 | 190 | 6 | 19 | 5 | 20 | 20 | 52 | 9 |

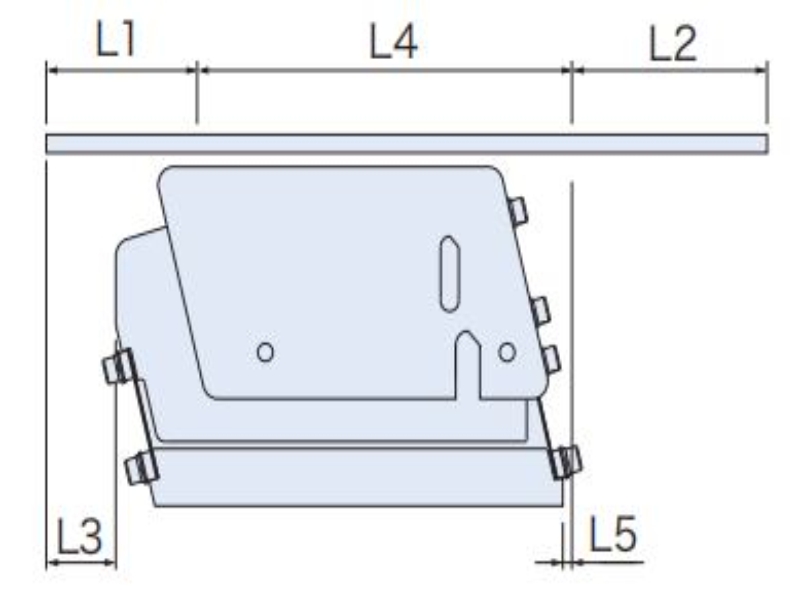

Chute Specifications, Including Basic Position
| Model | Max. length | Max. Width | Min Thickness |
Weight range (Kg) |
| LFB-300 | 300 | 50 | 6 | 0.4~1.0 |
| LFB-400 | 400 | 50 | 10 | 0.8~2.0 |
| LFB-550 | 550 | 65 | 14 | 1.4~3.5 |
| Model | Basic position (at max. chute length) | ||||
| L1 | L2 | L3 | L4 | L5 | |
| LFB-300 | 66 | 110 | 40 | 124 | 3 |
| LFB-400 | 105 | 150 | 70 | 145 | 5 |
| LFB-550 | 140 | 210 | 85 | 200 | 5 |
