Sinfonia Linear Feeder (LFB-600\LFB-750\LFB-900)

Sinfonia Linear Feeder (LFB-600\LFB-750\LFB-900)Features

1. Applicable longer and wider linear chutes.                            Because new LFG series have longer body from conventional models, more long and wide chutes can be applicable.
2. Stable vibrating conveyance
It prevents move of body caused by vibration with using original vibration isolation rubber.
3. Withstand load improved
Withstand load improved by applying a long chute
 4. Almost same size of drive unit compared with conventional size.
*Except chute installation tap positions
Ability improved with same size from conventional size.



Specification
Model LFB-600 LFB-750 LFB-900
Rated voltage       V  200
Rated Current       A 0.2 0.37 0.41
Vibration Fre         HZ 80~110 80~110 80~110
Weight                  KG 3.0 5.0 10.0
Spring angle   Degree 15
Max amplitude    mm 0.6 0.65 0.75
Controller C10-1VF/1VFEF
Model Max. length Max. Width Min Thickness Weight range
         (Kg)
LFB-600 600 50 10 1.4~3.6
LFB-750 750 65 14 2.2~5.4
LFB-900 900 75 18 4.0~9.8

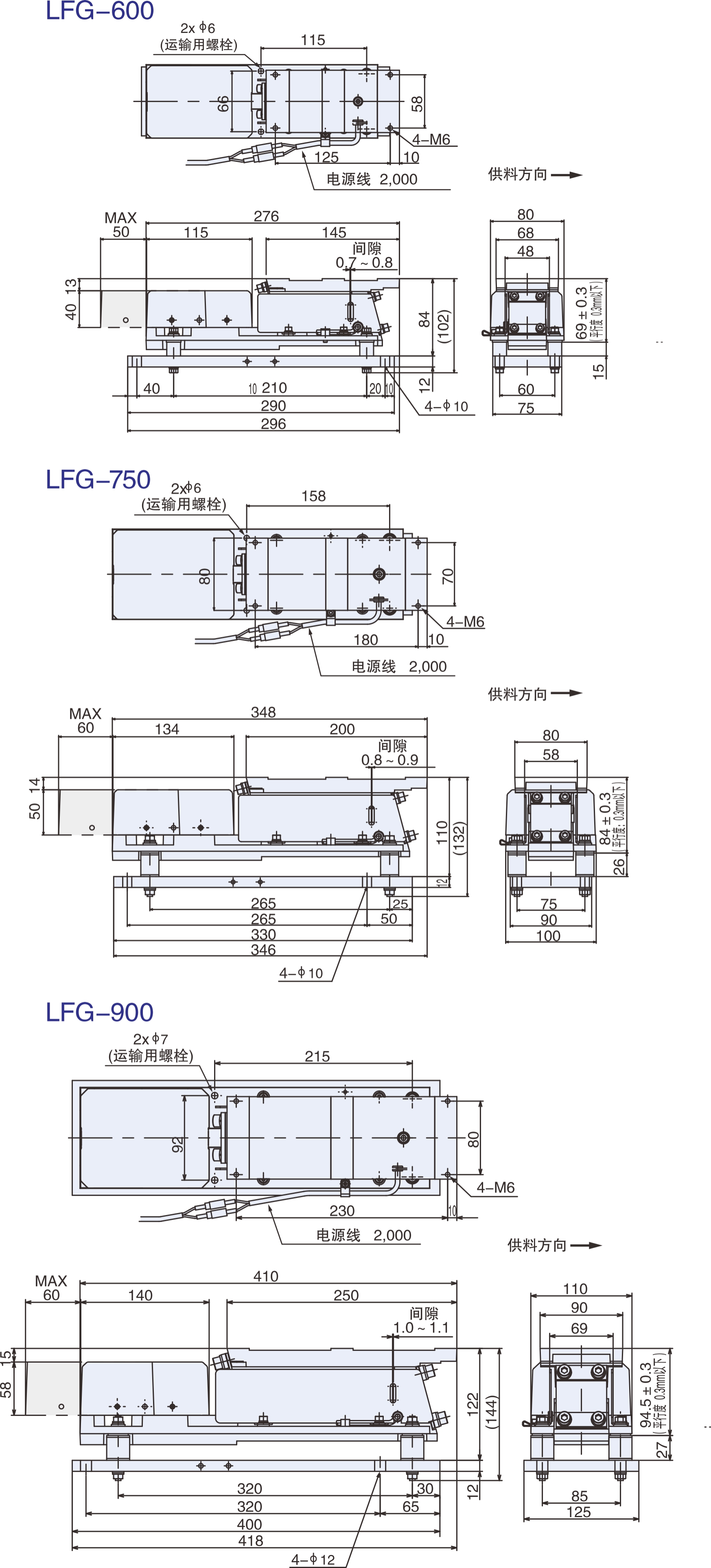

Sinfonia Linear Feeder (LFB-600\LFB-750\LFB-900)

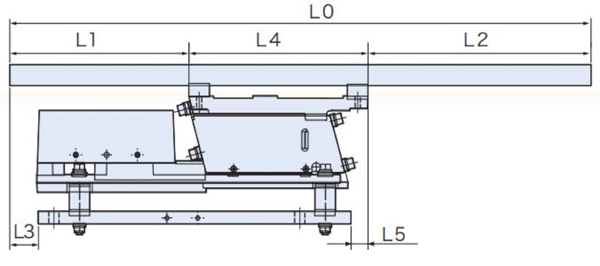

Model Basic position (at max. chute length)
L0 L1 L2 L3 L4 L5
LFG-600 600 180 275 29 145 6
LFG-750 750 220 330 74 200 16
LFG-900 900 260 390 92 250 18
