Reliatronic vibrator

Reliatronic vibrator


 Reliatronic vibrator is made of special alloys, and has reliable performance, long life endurance and strong power. After long time repeated operation,  the electromagnet would not generate heat and the springs have no attenuation.Low noise, easy for mounting, stable feeding & orientating.

Product detail

Reliatronic vibrator



Reliatronic vibrator Reliatronic vibrator Reliatronic vibrator








































Features


Reliatronic vibrator is made of special alloys, and has reliable performance, long life endurance and strong power. After long time repeated operation,  the electromagnet would not generate heat and the springs have no attenuation.Low noise, easy for mounting, stable feeding & orientating.

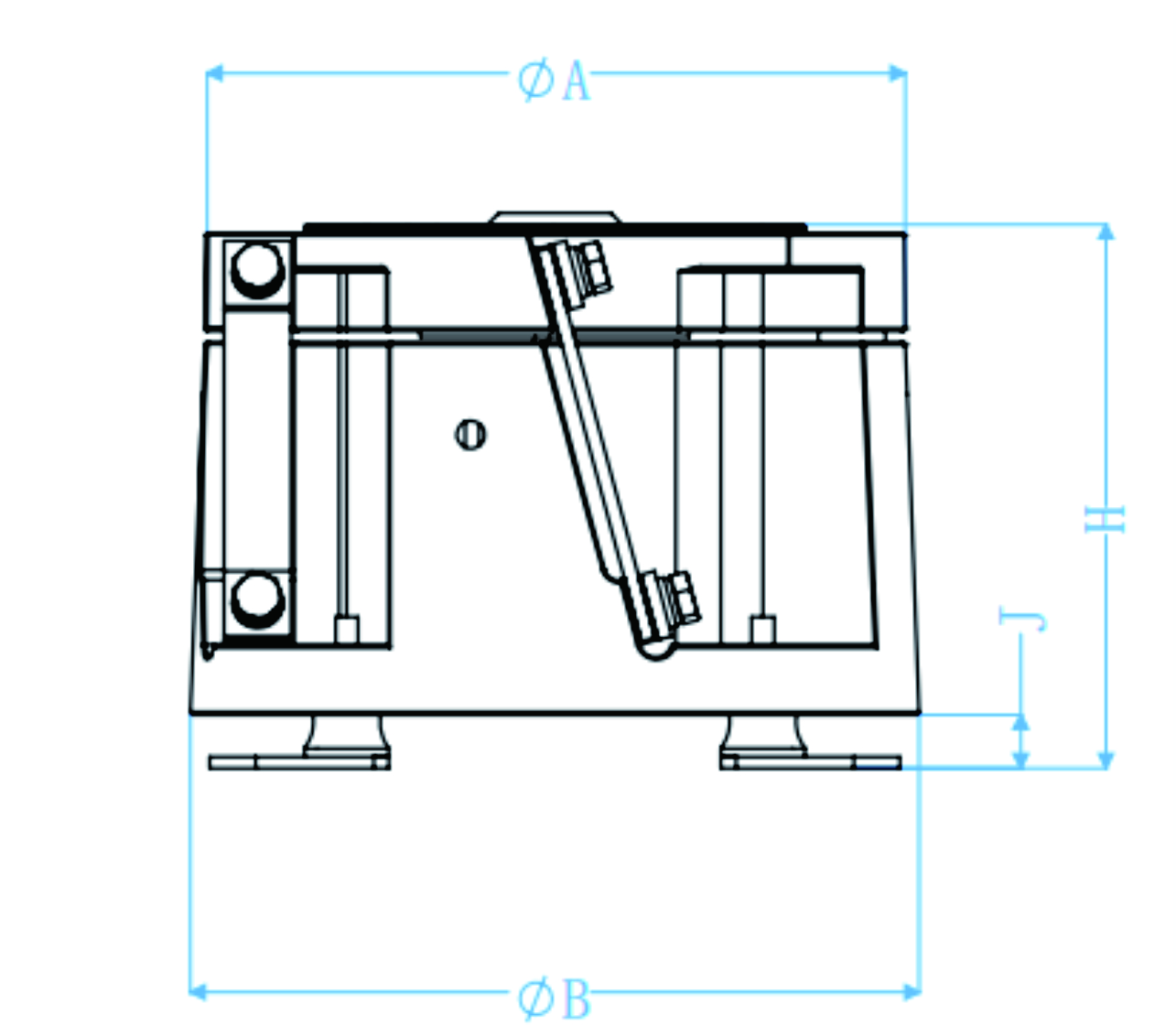

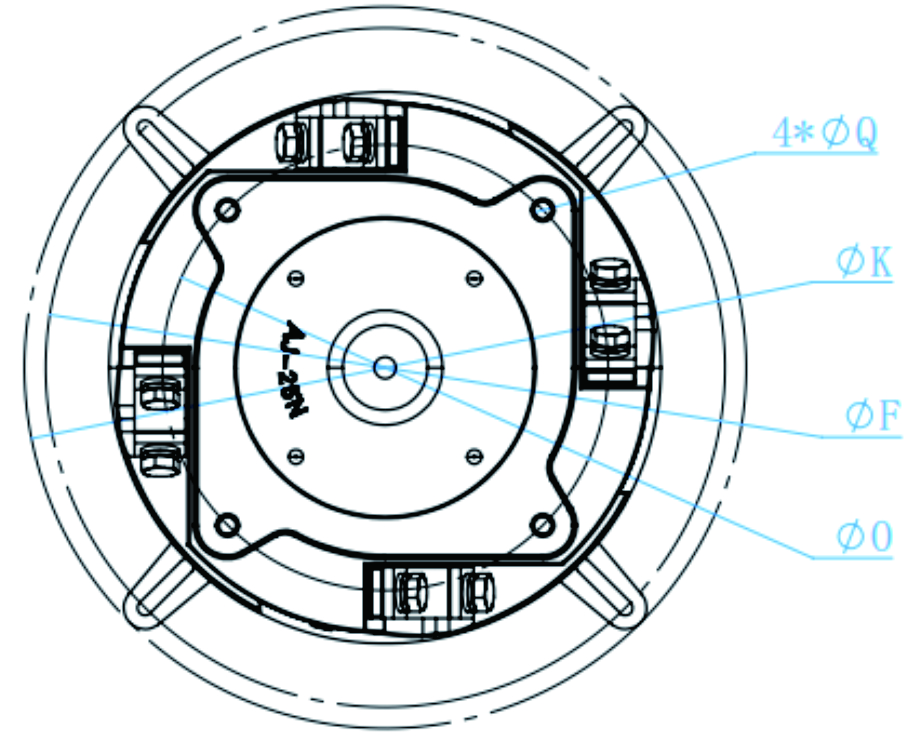

Dimensions

Model H(mm) ΦA(mm) ΦB(mm) M(mm)
AJ-C150 133 150 160 8
AJ-C200 154 200 210 10
AJ-C250 194 250 260 12
AJ-C300 227 300 310 12
AJ-C400 250 380 390 6

Specification

Model AJ-C150 AJ-C200 AJ-C250 AJ-C300 AJ-C400
Dia mm 165 210 260 310 390
Height mm 133 154 194 227 250
Weight KG 10 20 32 52 86
Spring angle Degree 15
Rated Voltage V 220
Vibration Fre Hz 80~180
Max Dia mm 250 350 450 600 700
Controller AJ-31S AJ-31M AJ-31L
