Product Combination(Sinfonia Vibrator + Linear Feeder)

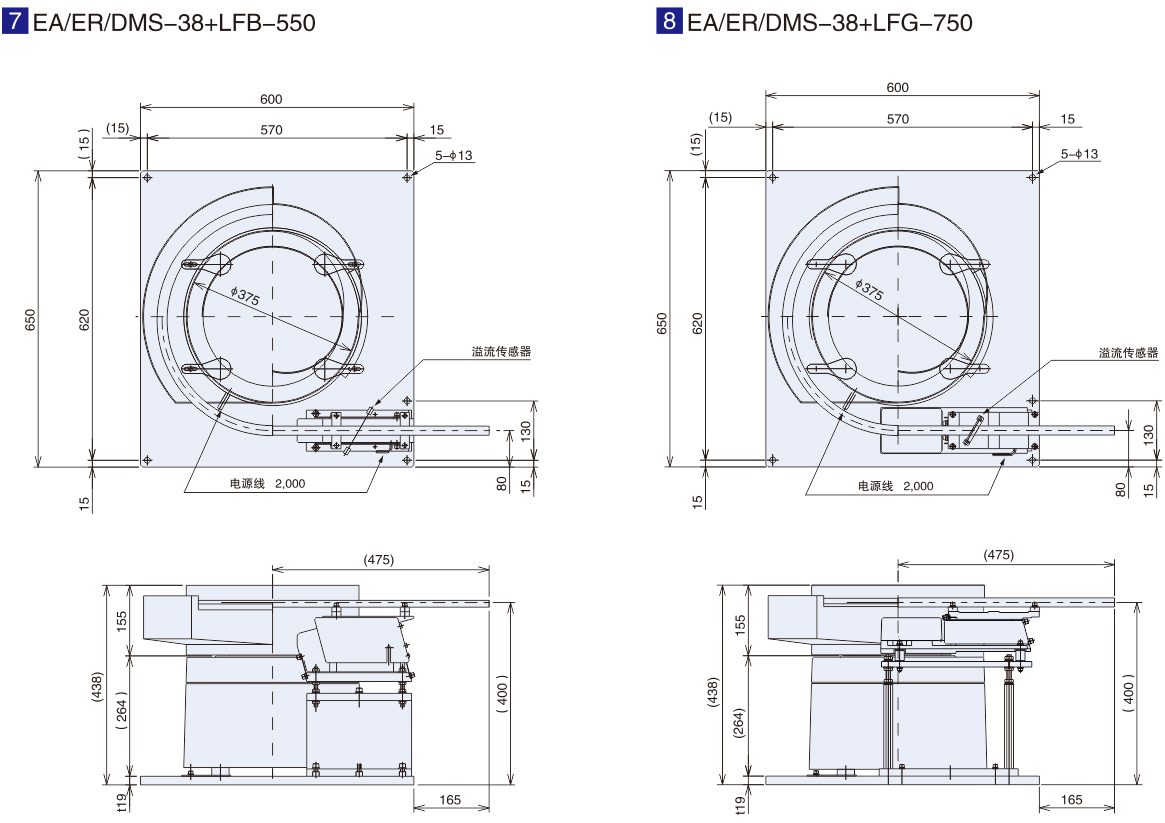

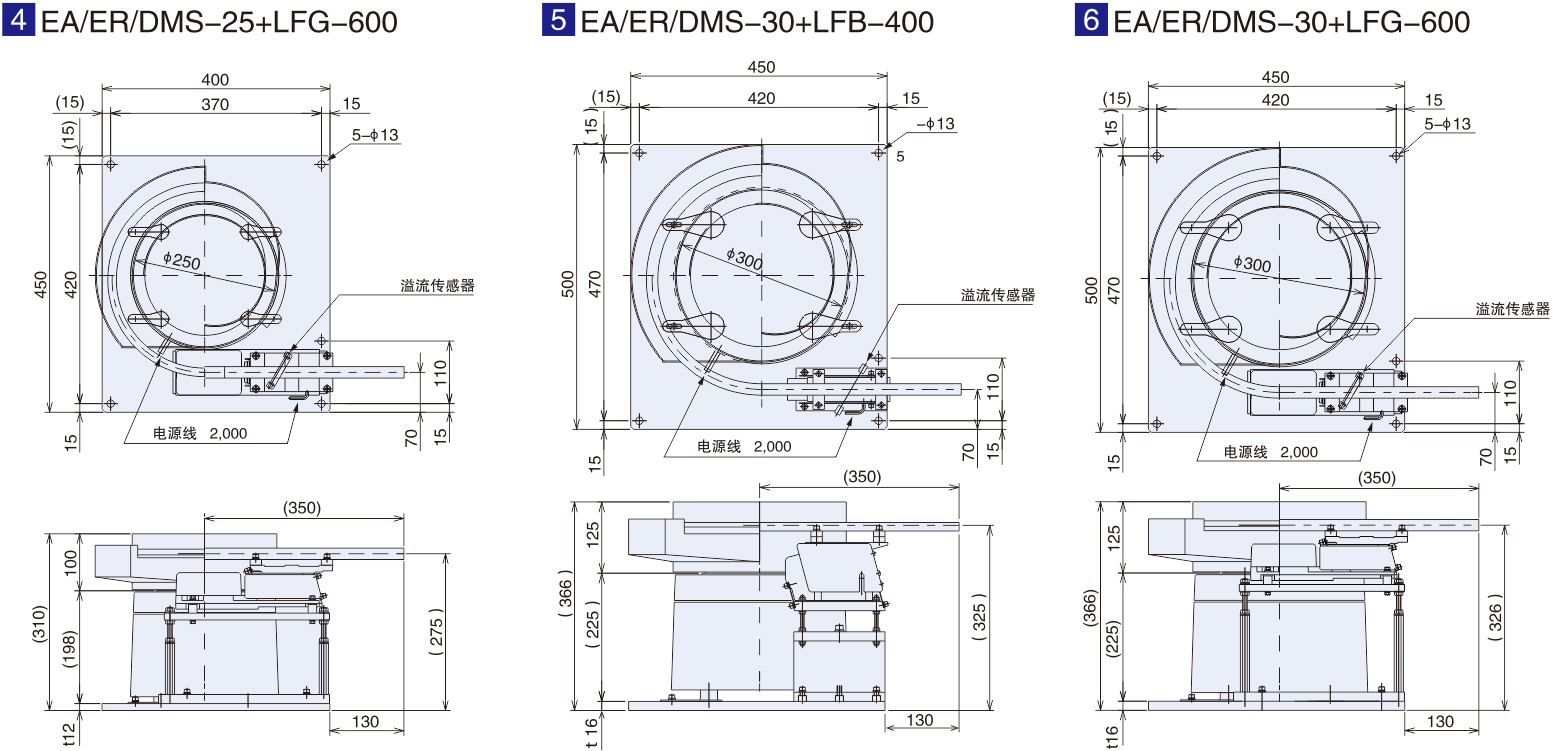

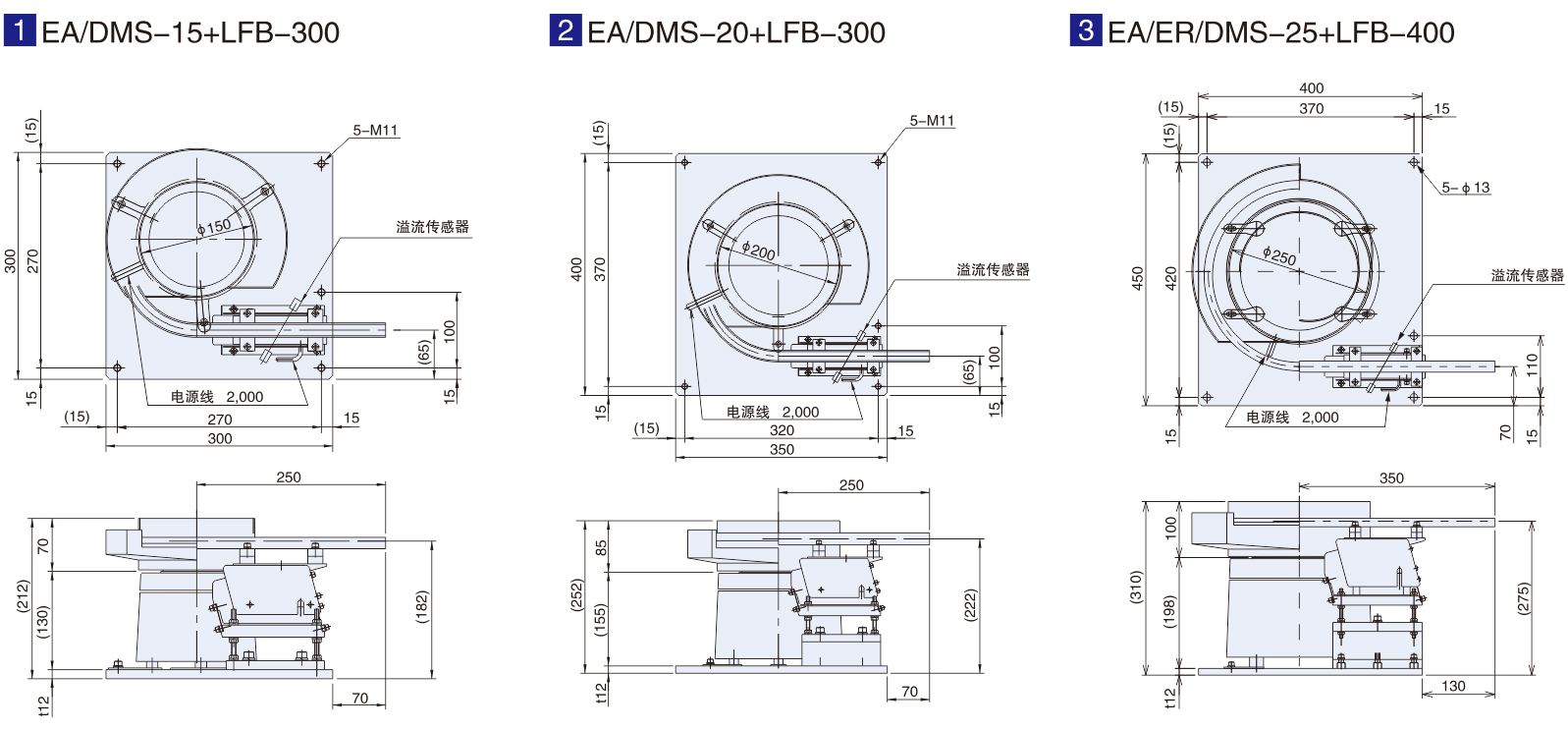

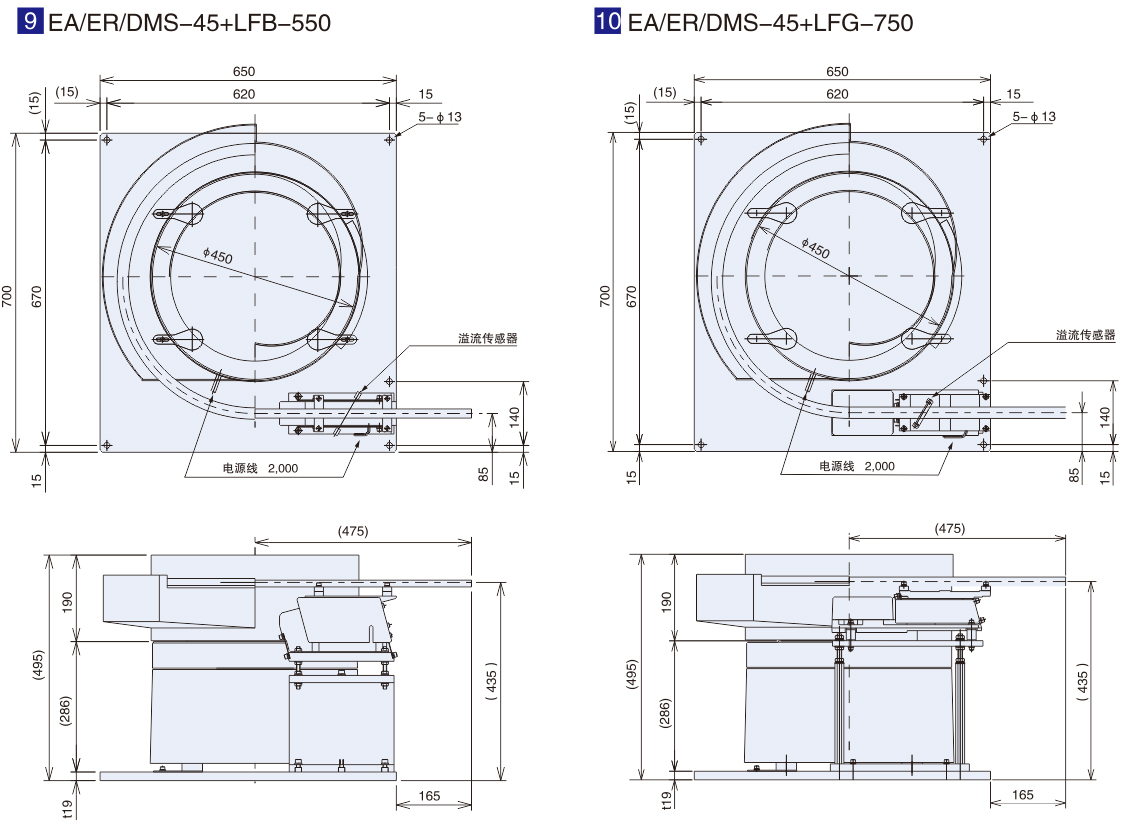

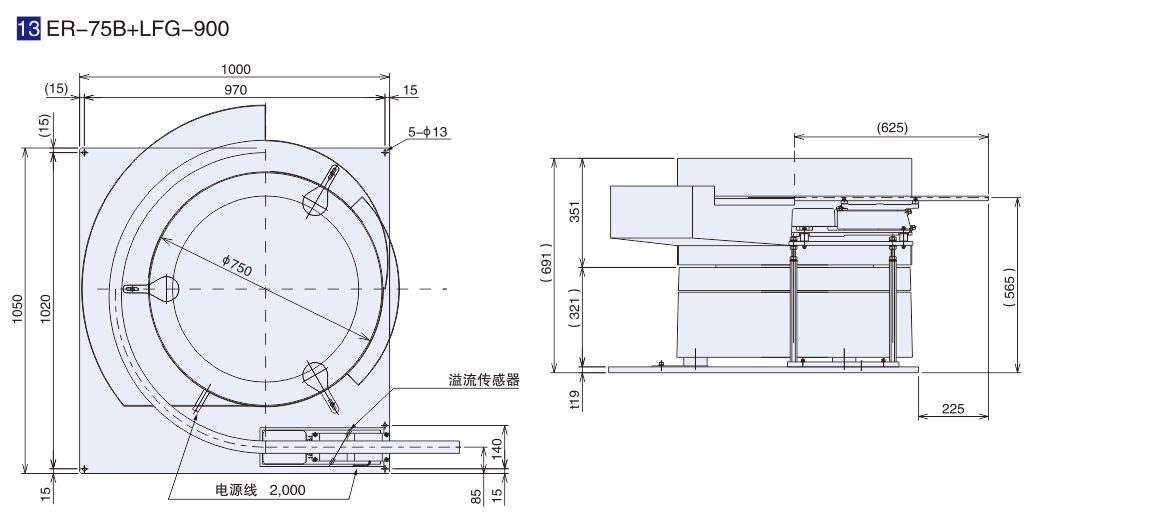

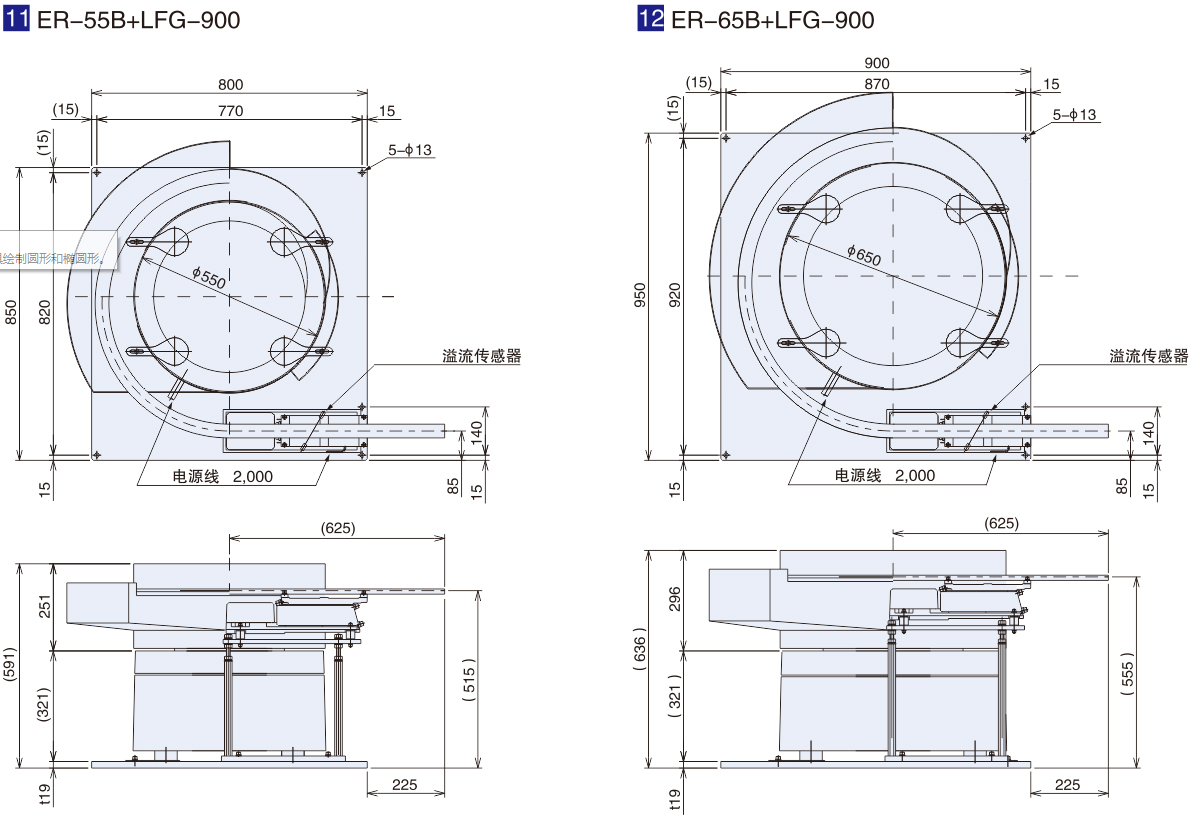

Notes: All diagrams above show straight wall bowls, however combinations are also possible with track-stepped bowls. (Only bowl diameter and chute exit height vary; all other dimensions are the same for both types of bowl) Variety of combinations are possible, depending on the type of workpiece. Please contact us for more details.
Product detail
Product Combination(Sinfonia Vibrator + Linear Feeder)
| Model | Linear Feeder Model | |||||
| Leaf-spring vibro-isolating | ||||||
| LFB-300 | LFB-400 | LFB-500 | LFG-600 | LFG-750 | LFG-900 | |
| EA/DMS-15 | 1 | |||||
| EA/DMS-20 | 2 | |||||
| EA/ER/DMS-25 | 3 | 4 | ||||
| EA/ER/DMS-30 | 4 | 6 | ||||
| EA/ER/DMS-38 | 7 | 8 | ||||
| EA/ER/DMS-45 | 9 | 10 | ||||
| ER-55B | 11 | |||||
| ER-65B | 12 | |||||
| ER-755B | 13 | |||||
Notes:
All diagrams above show straight wall bowls, however combinations are also possible with track-stepped bowls. (Only bowl diameter and chute exit height vary; all other dimensions are the same for both types of bowl) Variety of combinations are possible, depending on the type of workpiece. Please contact us for more details.
