Elevator feeder
Automatic Vibratory bowl feeder is a kind of auxiliary equipment of automatic assembly machine, which can arrange out all kinds of products in an orderly way. It can be combined with automatic assembly equipment to assemble all parts of the product into a complete product. Vibration bowl feeder is widely used in Electronics, hardwares, plastic cements, medicamenst, foods, toys, stationeries, daily goods and other industries. It is the necessary equipment to solve the supply of industrial automation equipment. Vibration bowl feeder can also be used in sorting, testing, counting and packaging, etc. It is a modern high-tech product.
Product detail
Elevator feeder

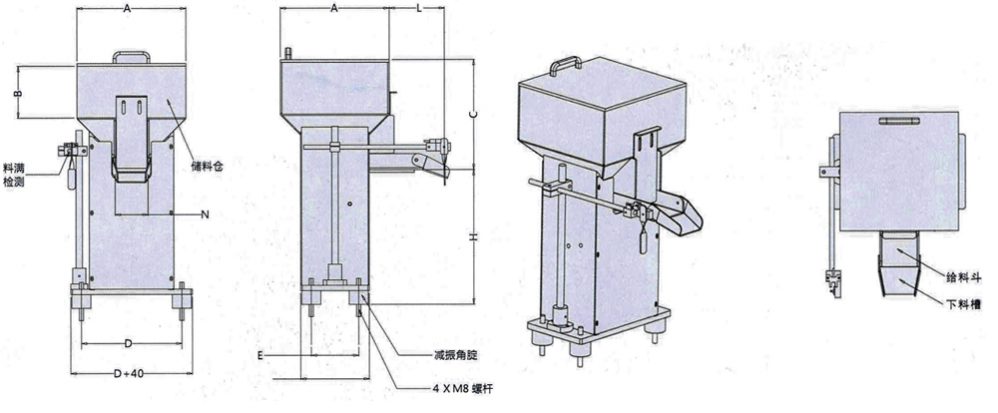

| Dimension | |||||||||||
| Model | A | B | C | D | E | F | G | J | K | M | T |
| AJ-005 | 200 | 76 | 190 | 215 | 245 | 150 | 35 | 24 | M8 | 18 | |
| AJ-010 | 250 | 100 | 218 | 250 | 280 | 50 | |||||
| AJ-015 | 300 | 120 | 238 | 270 | 300 | 30 | 25 | ||||
| AJ-020 | 350 | 160 | 378 | 320 | 350 | ||||||
| AJ-030 | 400 | 220 | 338 | 380 | 420 | 140 | 200 | ||||
| AJ-050 | 500 | 248 | 384 | 420 | 460 | 160 | 240 | 60 | M10 | 27 | |
| AJ-100 | 600 | ||||||||||
| Model | AJ-005 | AJ-010 | AJ-015 | AJ-020 | AJ-030 | AJ-050 | AJ-100 |
| Hopper Capacity (g) | 5 | 10 | 15 | 20 | 30 | 50 | 100 |
| Loading Capacity(kg) | 1.5 | 3 | 5 | 7 | 10 | 15 | 30 |
| Rated Voltage(V) | 100/200 | ||||||
| Rated Current(A) | 0.8/0.4 | 1.0/0.5 | 2.5/1.7 | ||||
| Specification | |||||||
| Input Frequency(Hz) | 50/60 | ||||||
| Drive Waves | Half Wave | ||||||
| Max Magnet distance (mm) | 1.0 | 1.2 | 1.5 | ||||
| Weight(kg) | 24 | 27 | 30 | 40 | 55 | 78 | 95 |
| Spring Angle | 15 | ||||||
| Cable length(mm) | 500 | ||||||
| Material | SPH/SUS(only body and feeder chute) | ||||||
| Internal treatment | Polyurethane / Polish | ||||||
| Coating color | White | ||||||
| Controller | AJ-31M | ||||||
