Product detail

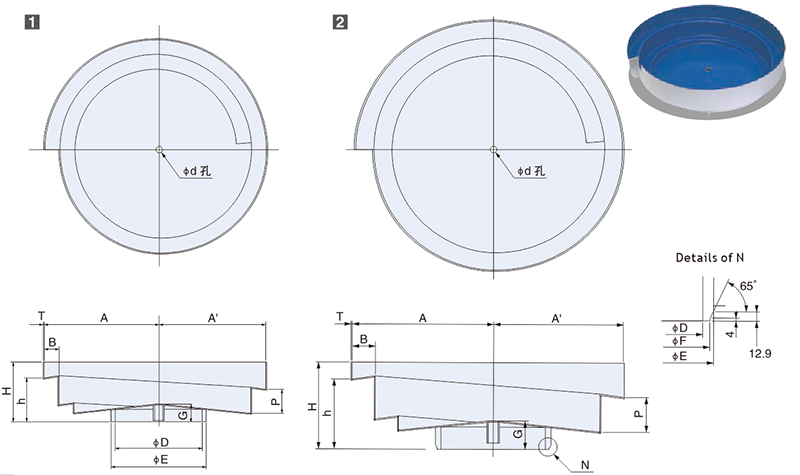

Cascade Bowl
| Model 1 | Ref Dia | A | A' | B | H | h | P | Φd | ΦD | ΦE | G | T | Approx weight(KG) | Capacity(g) |
| EA/DMS-15 | 215 | 110 | 102.5 | 15 | 65 | 50 | 24 | 8.2 | 73.1 | 89.1 | 23 | 2 | 1.3 | 0.4 |
| EA/DMS-20 | 280 | 145 | 135 | 20 | 80 | 59 | 30 | 10.2 | 104 | 120 | 26 | 2 | 2.2 | 0.8 |
| EA/ER/DMS-25 | 350 | 180 | 167.5 | 25 | 95 | 70 | 38 | 12.2 | 143 | 159 | 28 | 2 | 3.3 | 1.6 |
| EA/ER/DMS-30 | 450 | 230 | 215 | 30 | 120 | 88 | 48 | 12.2 | 174.7 | 190.7 | 36 | 2 | 5.4 | 3.5 |
| EA/ER/DMS-38 | 540 | 280 | 260 | 40 | 150 | 109 | 58 | 16.2 | 216 | 232 | 45 | 2 | 8 | 6 |
| EA/ER/DMS-45 | 650 | 335 | 310 | 50 | 185 | 135 | 72 | 16.2 | 282.5 | 298.5 | 54 | 3 | 16 | 10 |
| Model 2 | Ref Dia | A | A' | B | H | h | P | Φd | ΦD | ΦE | ΦF | G | T | Approx weight(KG) | Capacity(g) |
| ER-55B | 750 | 390 | 358 | 64 | 240 | 193 | 96 | 25 | 288.5 | 318.5 | 309.2 | 78 | 3 | 26 | 17 |
| ER-65B | 850 | 445 | 405 | 80 | 306 | 236 | 120 | 25 | 373 | 406.4 | 397.2 | 88 | 3 | 37 | 20 |
| ER-75B | 950 | 495 | 45 | 80 | 346 | 256 | 130 | 25 | 477.8 | 508 | 498.7 | 99 | 3 | 47 | 25 |
Note: 1) Bowls are made of stainless steel, and standard color is differ from color of pictures above.
2) Bowls available with clockwise or counter-clockwise orientation.
3) Capacity varies according to the type of workpiece. *When supplied unprocessed, neither inside nor outside has been surface-treated.

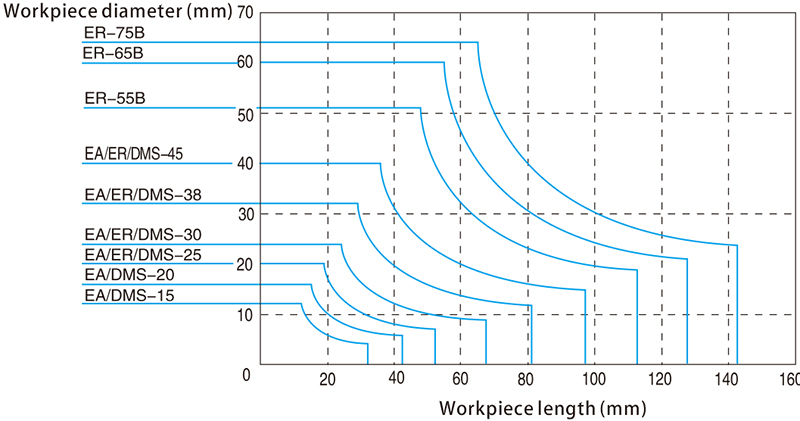

Cascade Bowl Selection Guide
