Reliatronic Flat Spring Linear Feeder
Dongguan Chuangyu Electronic Co., Ltd. is a branch of Keepro Industry Group, founded in 2009 and specialized in developing and producing various high quality automatic feeders, like vibratory bowl feeders, centrifugal feeders, line feeders, step feeders, and robotic screw fastening machines, like handheld screw fatening machine, platform XYZ automatic screw robot and customized automatic screw fastening system upon our customers' demands. The main applicable industriesare automotive, home appliances, electronic, automobile, electrical components, 3C etc.
Product detail

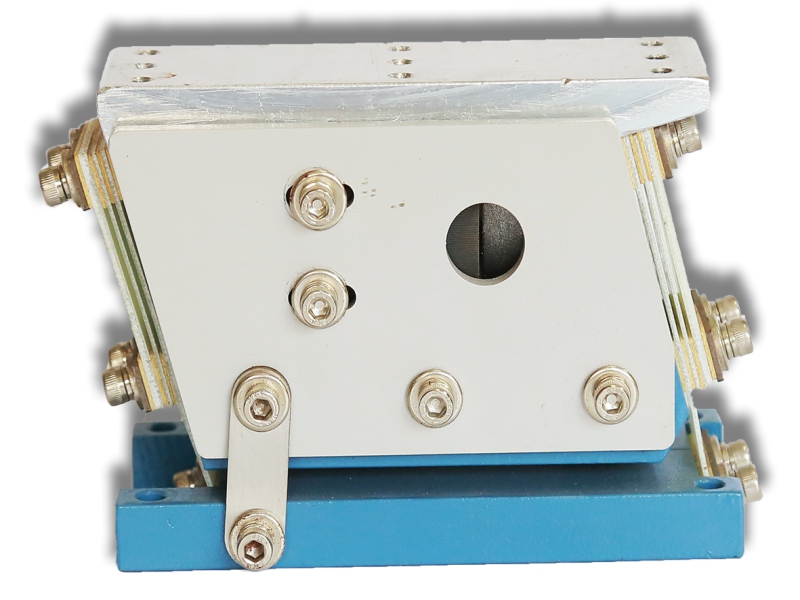

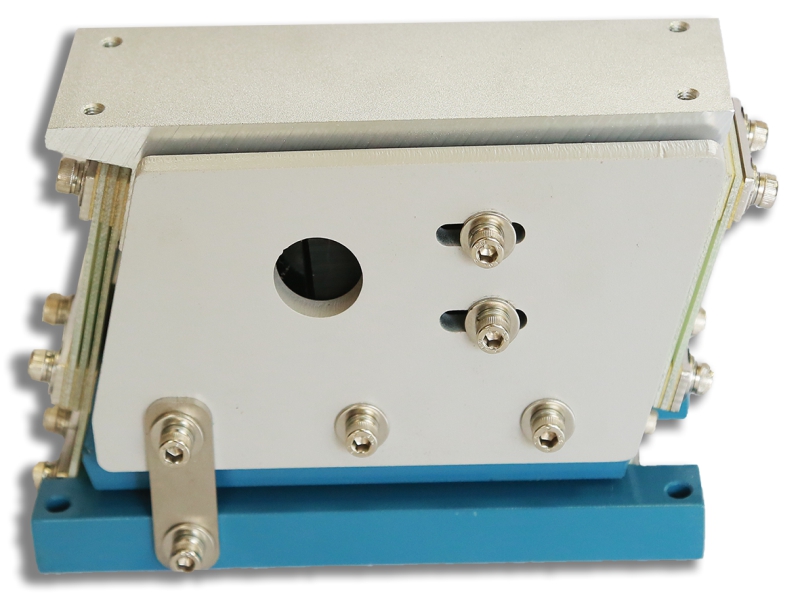

Reliatronic Flat Spring Linear Feeder
Features
1. Using frequency converter controller, no need to adjust spring or chip distance;
2. Easy mounting and positioning, no need further adjustment;
3. Small amplitude, no vibration interruption between the linear and bowl feeder;
4. 3 models are applicable to various applications.
| Specification | |||
| Model | AJ-HL04 | AJ-L140 | AJ-L190 |
| Rated voltage V | 200 | ||
| Rated Current A | 0.5 | 0.8 | 1.0 |
| Vibration Fre HZ | 200~300 | 20~120 | 50~90 |
| Track length max mm | 300 | 400 | 550 |
| Track width max mm | 50 | 50 | 65 |
| Weight KG | |||
| Spring angle Degree | 15 | ||
| Controller | AJ-31S | ||
